Supplying process heat
Steam can heat a variety of industrial processes.
Steam boilers
Process heat and power generation with steam. Different boiler designs are combined with Kablitz combustion systems for the fuel and application in question.
Discover the technology
From combustion to steam.

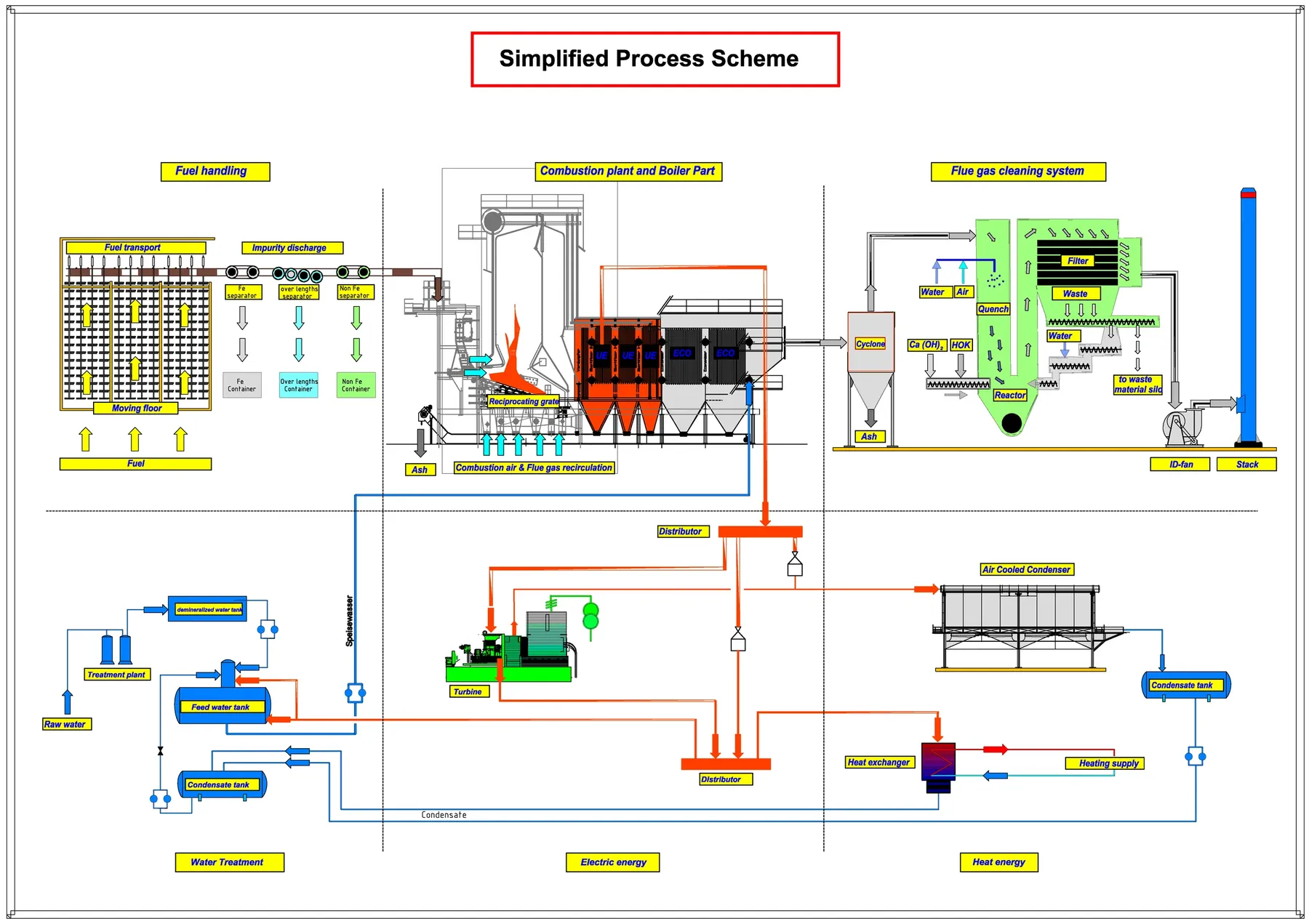

The original process diagram shows how the plant components interact. It is an example of a system, not a simulation or binding plant design.
Original image · product detail
Modular in structure. Individually designed.
Material, media and structure determine the specific design.
Generating electricity
Steam can be used in turbines to generate electricity. The combination depends on the plant.
Combining technology
Boilers and Kablitz combustion systems are combined for the application. Kablitz also supplies complete CHP plant technology.
Boiler designs at a glance.
The design depends on the specific plant.
| Product | Design | Application | Details |
|---|---|---|---|
| Vertical water-tube boiler | Biomass | Vertical water-tube boiler for a plant-specific design. | View details |
| Horizontal water-tube boiler | Horizontal water-tube boiler / tail-end | Horizontal water-tube boiler for a plant-specific design. | View details |
| Fire-tube combination boiler | Fire-tube boiler with water-tube cooling screen | Fire-tube combination boiler for a plant-specific design. | View details |
The technology in detail.

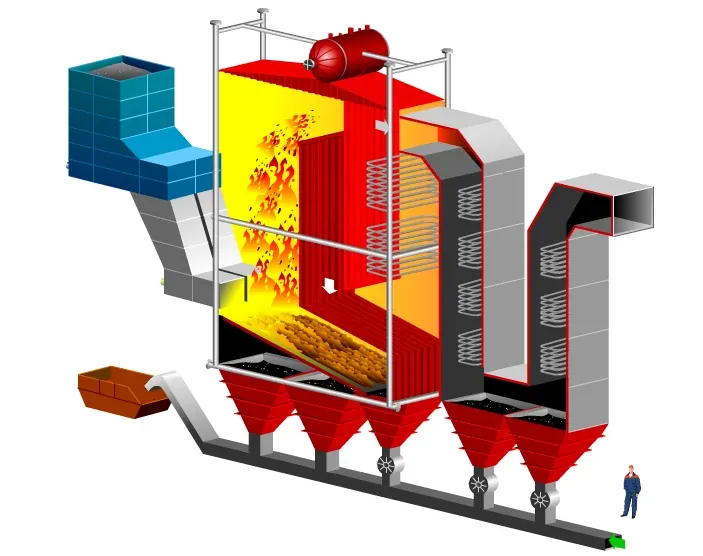

Vertical water-tube boiler
Vertical water-tube boiler for a plant-specific design.
- Fuel
- Biomass
- Output
- Up to approx. 120 MW
- Pressure
- Up to approx. 100 bar
- Temperature
- Up to approx. 520 °C
Classic vertical water-tube boilers for biomass. Output, pressure and temperature are each upper limits and do not describe a combined operating point.

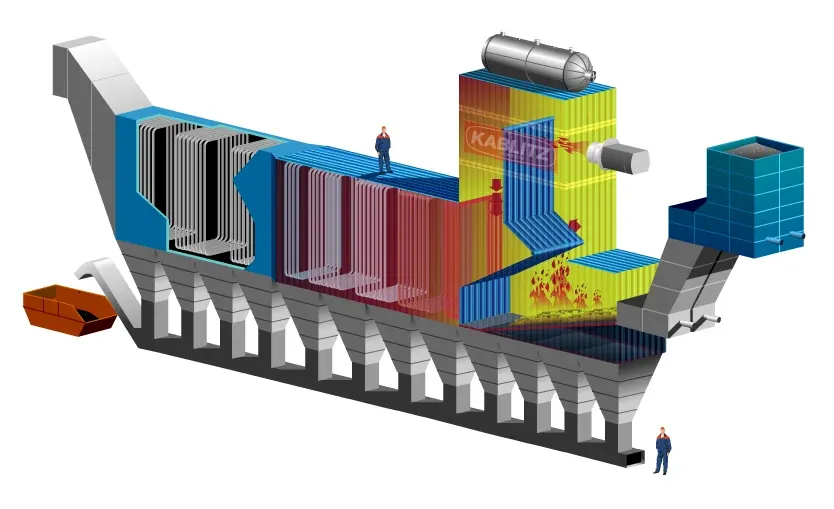

Horizontal water-tube boiler
Horizontal water-tube boiler for a plant-specific design.
- Design
- Horizontal water-tube boiler / tail-end
- Fuel
- Waste wood and RDF/SRF
Horizontal water-tube boilers are used for the combustion of waste wood and RDF/SRF.

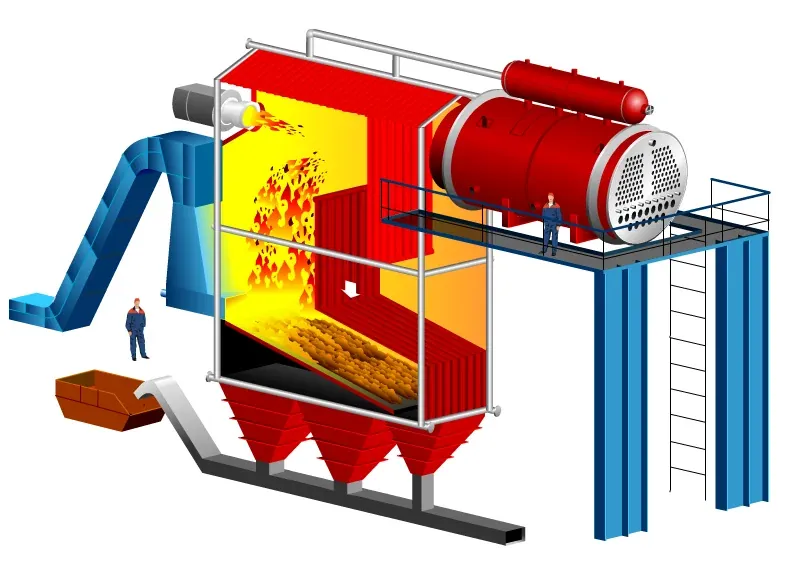

Fire-tube combination boiler
Fire-tube combination boiler for a plant-specific design.
- Design
- Fire-tube boiler with water-tube cooling screen
- Pressure
- Up to approx. 40 bar
- Steam output
- Up to approx. 40 t/h
Fire-tube boilers with a cooling screen of water tubes are built as combination boilers. The specific design and permissible operating conditions are defined for each plant.
