Using fine fuels
Grate and injection firing can be combined.

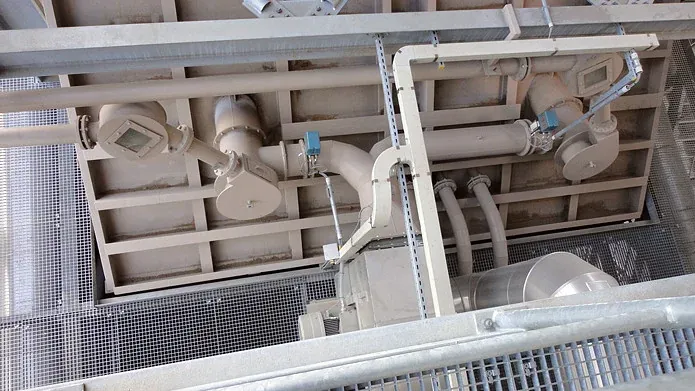

Pulverised fuel firing
Injection firing systems complement grate firing when very dry and fine fuels are used.
Feeding fuel precisely.
Fuel injection or multi-fuel burners, with matching conveying and dosing.

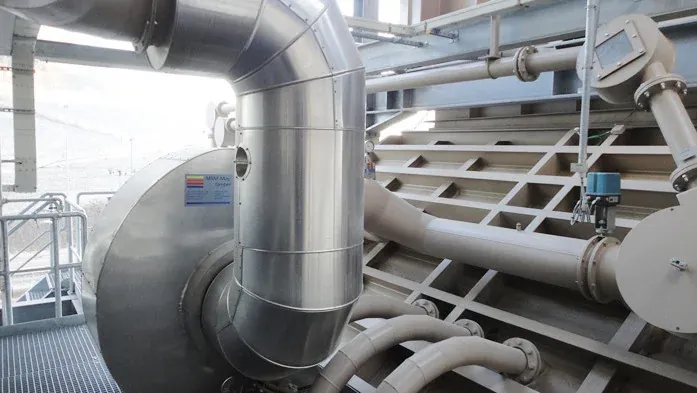

Original image · product detail
One system. Individually controlled.
Fuel movement and air supply are matched to each other.
Choosing the burner
Options include direct fuel injection or multi-fuel burners using heating oil and/or natural gas.
Matching the system
Combustion air, conveying and dosing are matched to the plant concept.
The technology in detail.
Injection firing
Design according to plant concept, process and installation situation.
- Version
- Injection or multi-fuel burner
- Installation
- Horizontal or vertical
Standalone operation without auxiliary fuel is possible; at low calorific values a support flame may be required.
Conveying and dosing equipment are part of the system scope.
Technical documents.
Biomass CHP plant
Ask Kablitz for the technical documents relevant to your product and application.
Request documents by emailYour plant starts with the fuel.
Discuss fuel, operating conditions and required output with Kablitz.
Get in touchPrepare a technical inquiry
Which data helps with system design?
Describe the fuel, available quantity, moisture content and required energy output. An existing fuel analysis and site information help match the combustion system to the project.
Can I inquire without complete design data?
Yes. Technical checklist fields are optional: provide the data you already know and leave outstanding points for further discussion.
Start a project inquiry
