Hot gas generators

Name: Hot gas generators
Brand: Kablitz

Hot gas generators supply heat for drying raw material in particleboard, fibreboard, MDF and OSB production.

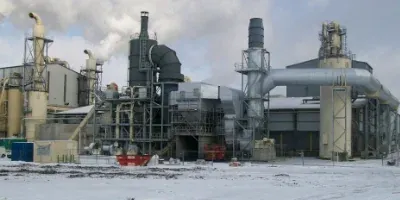

Archive image from the previous Kablitz hot gas overview; specific plant assignment unconfirmed — Hot gas generator · archive image

Heat for drying.

Depending on requirements, reciprocating grate firing, granulate nozzles and dust burners are combined. The archive image is not a process diagram.

Original image · product detail

Archive image of the hot gas overview — Product detail from the original Kablitz image archive.

Modular in structure. Individually designed.

Material, media and structure determine the specific design.

Supplying the drying process

Heat for drying raw material for particleboard, fibreboard, MDF and OSB.

Combining combustion

Reciprocating grate, granulate nozzles and dust burners are combined as required.

Providing a cyclone

An optional hot gas cyclone separates coarse dust particles.

Boiler designs at a glance.

The design depends on the specific plant.

Information from the previous website; technical confirmation pending.
Product	Design	Application	Details
Hot gas generator	Drying of raw material in wood-based panel production	Plant-specific design for the drying process.	View details

The technology in detail.

Archive image from the previous hot gas overview

Hot gas generator

Plant-specific design for the drying process.

Application: Drying of raw material in wood-based panel production
Output: From approx. 5 MWth
Option: Hot gas cyclone

Design, temperatures and output are defined for the specific drying process.

Technical documents.

Biomass CHP plant

Ask Kablitz for the technical documents relevant to your product and application.

Request documents by email

Heat and power for your plant.

Discuss media, temperatures and installation conditions with Kablitz.

Get in touch

Prepare a technical inquiry

Which data helps with system design?

Describe the required form of energy, output and operating conditions. For steam, mass flow, pressure and temperature are useful; for hot water, thermal oil or hot gas, provide the relevant temperatures and output data.

Can I inquire without complete design data?

Yes. Technical checklist fields are optional: provide the data you already know and leave outstanding points for further discussion.

Start a project inquiry
