A biomass CHP plant supplies a neighbouring paper mill with electricity and heat – from landscape maintenance wood, tomato vines and screen overflow.
Thermal input
Steam output
Electrical output
Challenge
The intended fuels are difficult: landscape maintenance wood, compost screening residues, tomato vines and similar special biomass with a moisture content of up to 60%.
Solution

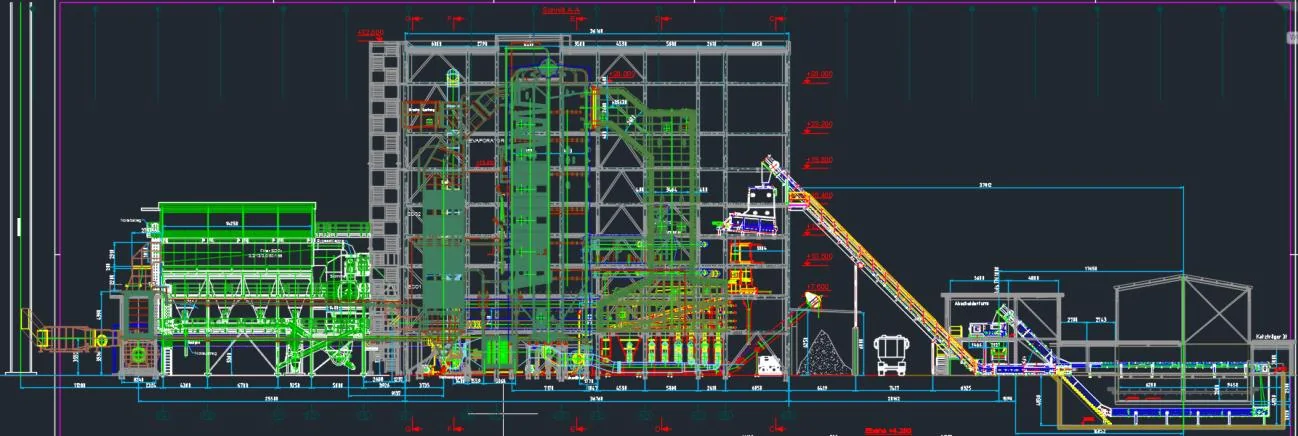

Kablitz supplied the plant from the walking floors for the various fuels to the stack: a fully adiabatic grate firing, the steam boiler for 42 t/h at 81 bar and 470 °C with auxiliary lines, and flue gas cleaning by dry sorption with hydrated lime.
Result
Since 2020/2021, the plant has generated up to 10 MW of electricity and up to 20.4 MW of heat for the paper mill.
Technology
Dollbergen, Germany
- Fuel
- Landscape maintenance wood, compost screening residues, tomato vines, wood chips
- Fuel moisture content
- up to 60 %
- Firing system
- Reciprocating grate, fully adiabatic
- Thermal input
- 36.5 MW
- Boiler output
- 33 MW
- Steam output
- 42 t/h
- Live steam
- 81 bar (a) / 470 °C
- Electrical output
- max. 10 MW
- Heat output
- max. 20.4 MW
- Flue gas cleaning
- Dry sorption with hydrated lime
- Commissioning
- 2020/2021
Inside the plant.
Every perspective.
