Borken Germany
On the site of an industrial company in Borken, a Kablitz waste wood power plant generates steam for electricity and heat.
34.65 MW (gross)
Thermal input
38.8 t/h (max. 40 t/h)
Steam output
Challenge
At the site in Borken, waste wood of categories A I to A IV was to be used in a combined heat and power process.
Solution

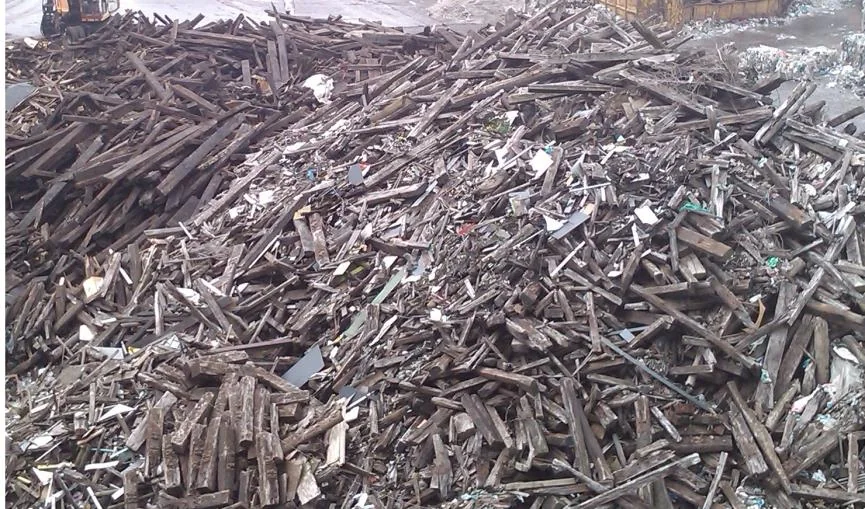

An air-cooled reciprocating grate with a thermal input of 34.65 MW supplies a steam generator for 38.8 t/h at 66 bar and 440 °C. The fuel is stored in the open and fed in shredded form. The flue gases are cleaned by dry sorption with lime and activated carbon.
Result
Since 2006, the plant has operated with an average boiler efficiency of 86%. The grate complies with the emission limits between 60 and 100% load.
Technology
Technology
Borken, Germany
- Fuel
- Waste wood A I–A IV
- Firing system
- Air-cooled reciprocating grate
- Thermal input
- 34.65 MW (gross)
- Steam output
- 38.8 t/h (max. 40 t/h)
- Live steam
- 66 bar (a) / 440 °C
- Calorific value range
- 3.3–5.0 kWh/kg
- Boiler efficiency
- 86 %
- Flue gas cleaning
- Dry sorption with lime and activated carbon
- Commissioning
- 2006
