Nysa Poland
Thermal input
Steam output (live steam)
Installed electrical output

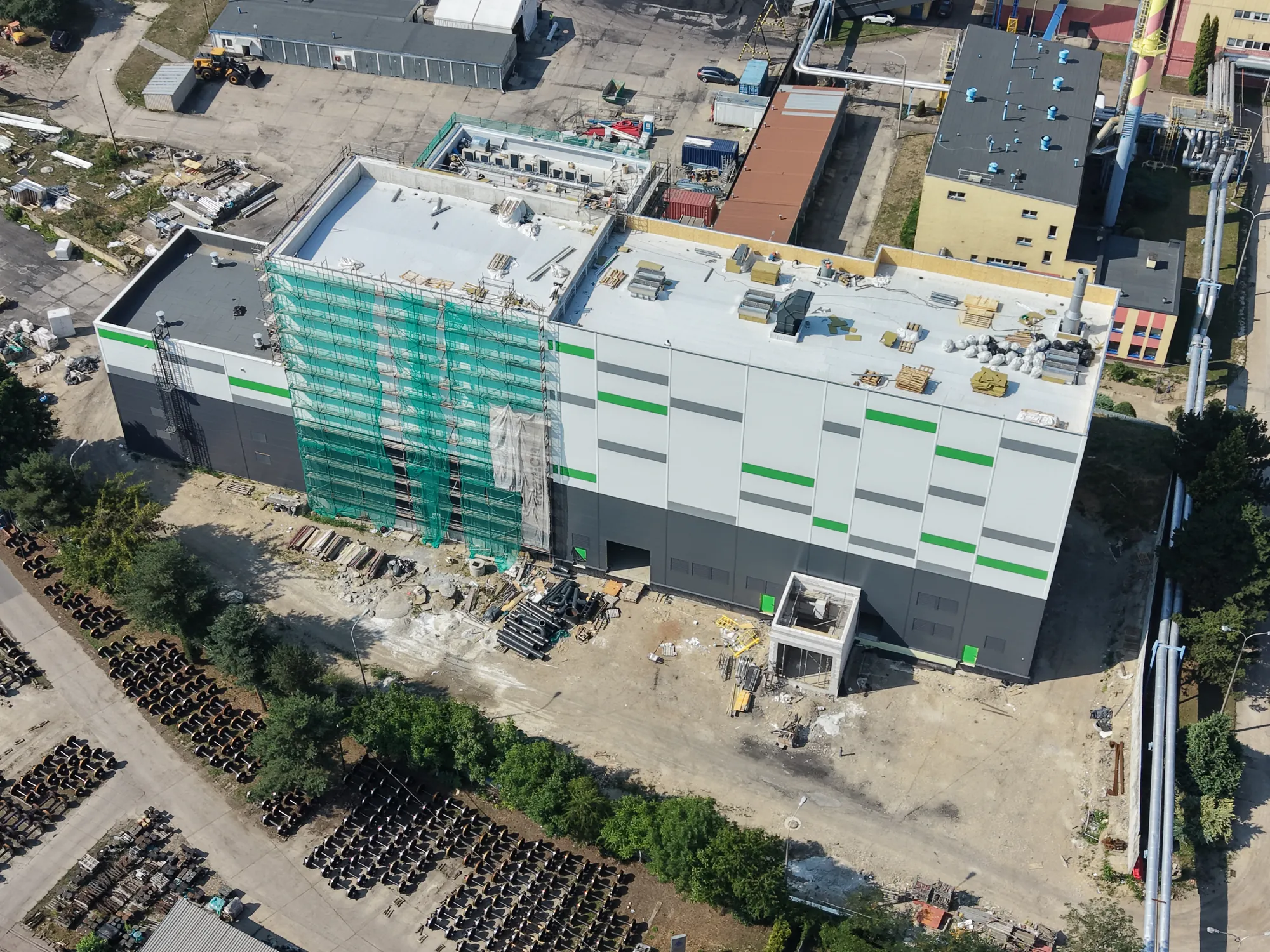

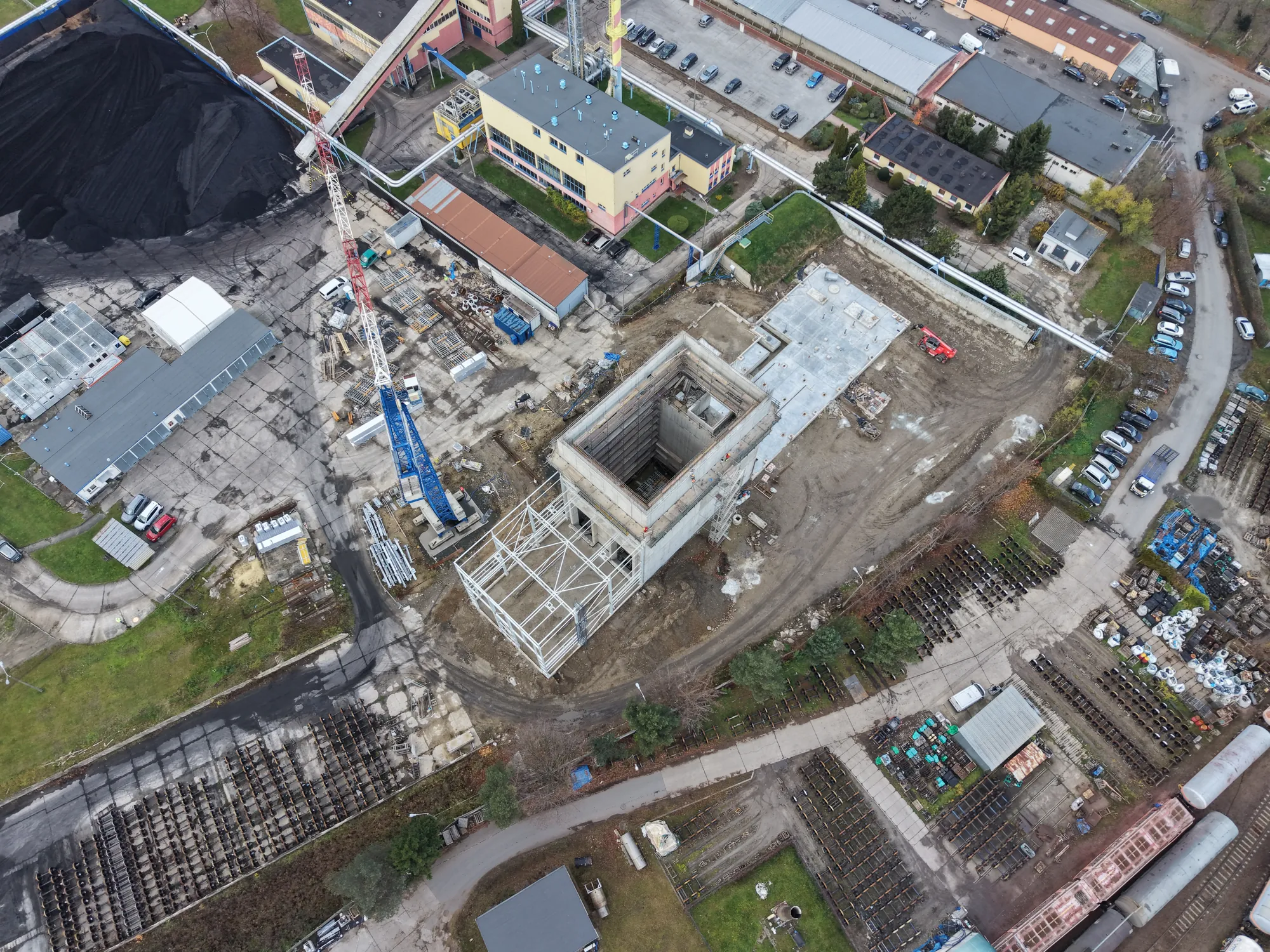

A combined heat and power plant is being built for the town of Nysa in Poland.
It is a CHP plant (combined heat and power) that simultaneously generates electricity for feeding into the power grid and district heating for the households and buildings in the town of Nysa.
The fuel is RDF and other waste, from which environmentally friendly energy is produced after combustion.
In this project, Kablitz acts as general contractor for the entire power plant. The scope includes, among other things, the complete engineering, earthworks and concrete works, steel and building construction, installation and erection of the complete power plant technology as well as the plant control system and commissioning.
These works are being carried out together with our partners and suppliers.
Technology
Nysa, Poland
- Plant type
- Waste incineration plant for district heating and electricity
- Fuel
- RDF (refuse-derived fuel)
- Calorific value range
- 3.6–4.7 kWh/kg
- Annual fuel throughput
- approx. 15,000 t
- Thermal input
- 7 MW
- Steam output (live steam)
- 8.1 t/h
- Steam temperature
- 380 °C
- Steam pressure
- 32 bar
- Installed electrical output
- approx. 1.5 MW
Inside the plant.
Every perspective.
