The biomass CHP plant in Bychow supplies a pellet production site and feeds 80 million kWh of electricity into the grid every year.
Thermal input
Steam output
Electrical output
Challenge
Untreated biomass and residues from the company's own production serve as fuel. Flue gas cleaning had to meet the limits under Belarusian law; the state environmental impact assessment was passed in December 2019.
Solution

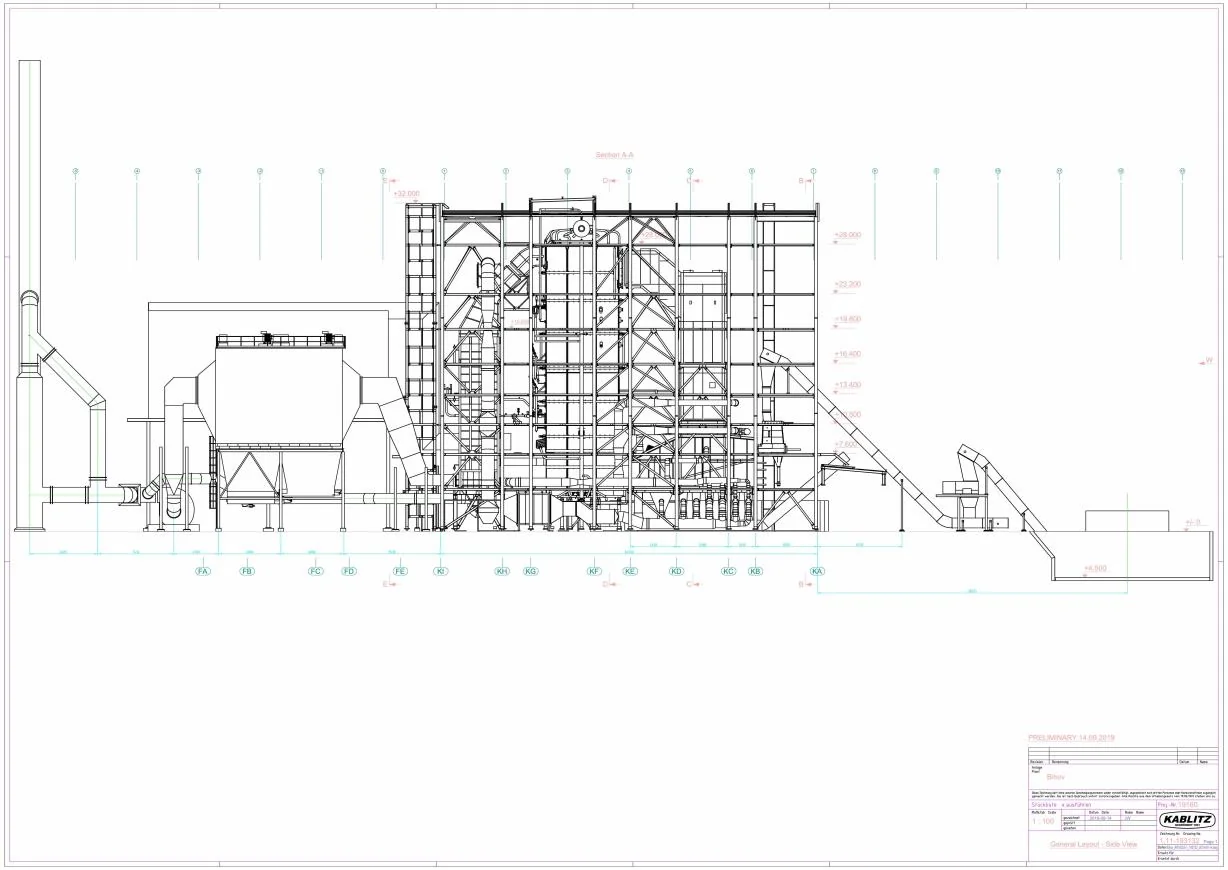

Kablitz supplied the plant from the walking floor to the stack: fuel feeding, reciprocating grate firing and boiler for 46 t/h at 85 bar and 495 °C, turbine with air-cooled condenser, electrostatic precipitator and flue gas condenser.
Result
Since 2022, the plant has generated 80 million kWh of electricity and 144 million kWh of heat every year. The flue gas condenser lowers the flue gas temperature to 75–95 °C.
Technology
Bychow, Belarus
- Fuel
- Biomass and production residues
- Firing system
- Reciprocating grate
- Thermal input
- 43.26 MW
- Boiler output
- 38.5 MW
- Steam output
- 46 t/h
- Live steam
- 85 bar (a) / 495 °C
- Electrical output
- max. 12 MW
- Heat output
- max. 18 MW
- Flue gas cleaning
- Electrostatic precipitator, flue gas condenser
- Commissioning
- 2022
Inside the plant.
