Hürth Germany
With a thermal input of around 88 MW, the CHP plant in Hürth supplies a paper mill with process steam and generates up to 20 MW of electricity.
Thermal input
Steam output
Electrical output
Challenge
On the premises of a paper mill in Hürth-Knapsack, up to 370,000 t of fuel per year were to be used: fresh wood and green waste, plus a share of paper sludge, waste wood A I–A III and solid recovered fuels – all year round, 8,760 hours.
Solution

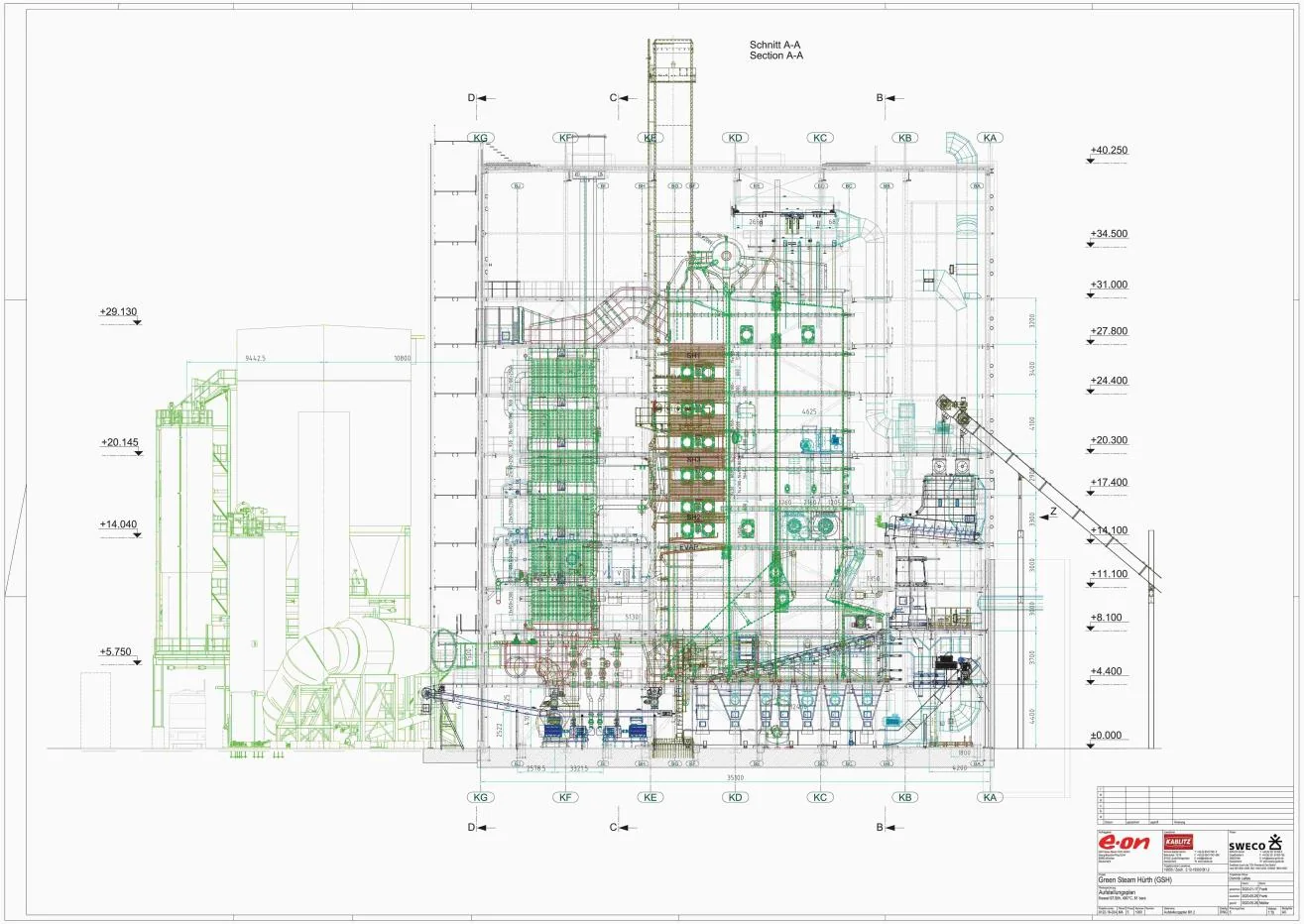

A reciprocating grate firing with 87.5 MW supplies a boiler with 97 t/h of steam at 81 bar and 490 °C. The fuel is delivered by truck to a storage hall with grab cranes; downstream flue gas cleaning is designed for the limits of the 17th BImSchV.
Result
The plant supplies either up to 20 MW of electricity or up to 50 t/h of process steam to the paper mill.
Technology
Hürth, Germany
- Fuel
- Fresh wood, green waste, paper sludge, waste wood A I–A III, SRF
- Fuel quantity
- up to 370,000 t/year
- Firing system
- Reciprocating grate
- Thermal input
- 87.5 MW
- Boiler output
- 77.25 MW
- Steam output
- 97 t/h
- Live steam
- 81 bar (a) / 490 °C
- Electrical output
- max. 20 MW
- Process steam
- max. 50 t/h
- Permit
- 17. BImSchV
- Commissioning
- 2022
Inside the plant.
Every perspective.
